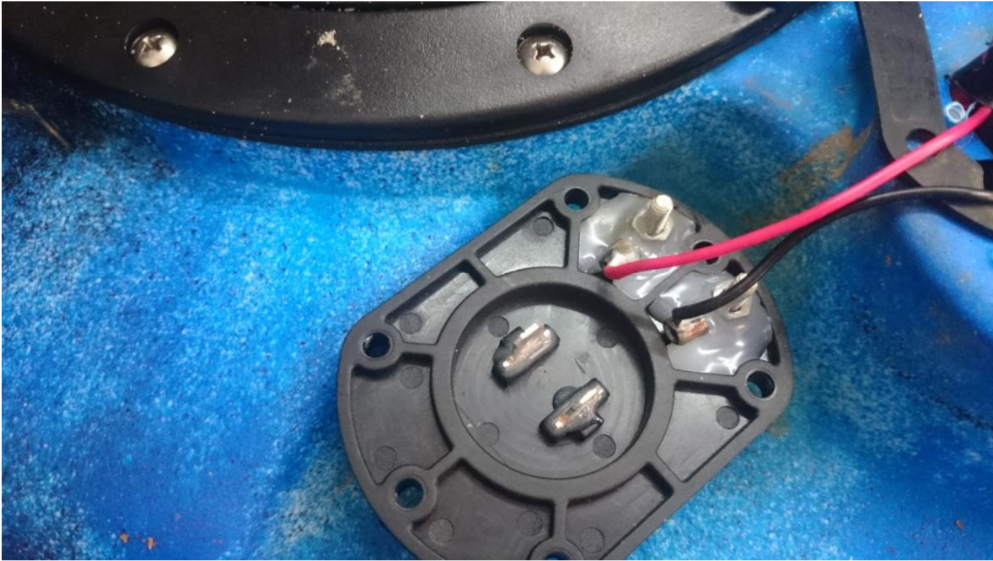

Hello friends, today I will show you how to connect your probe to the central console of your Wahoo. First of all we will remove the screws of the console to see what connections are treated, as we see in the photo it is Faston connectors

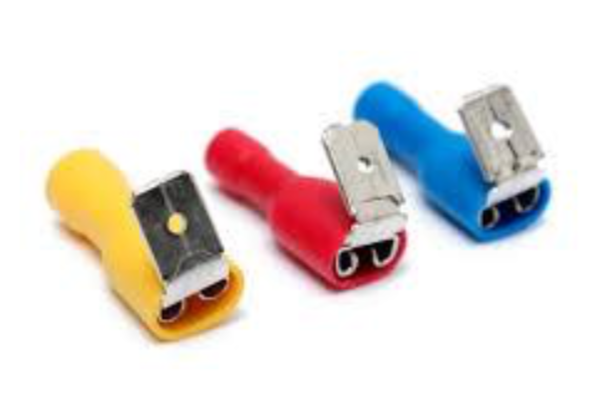

For this we will need 2 female Male faston connectors like these

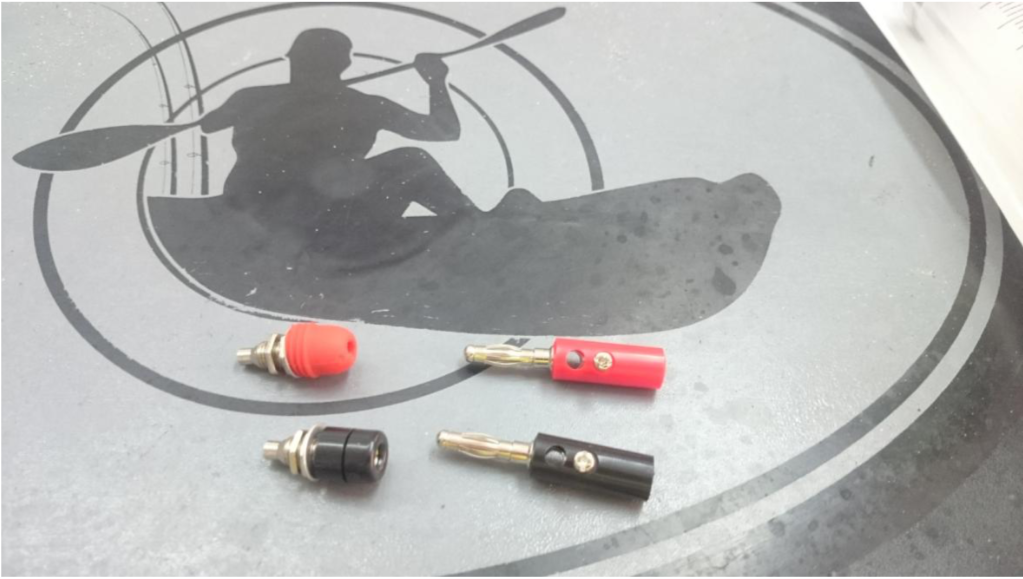

2 male and female banana connectors

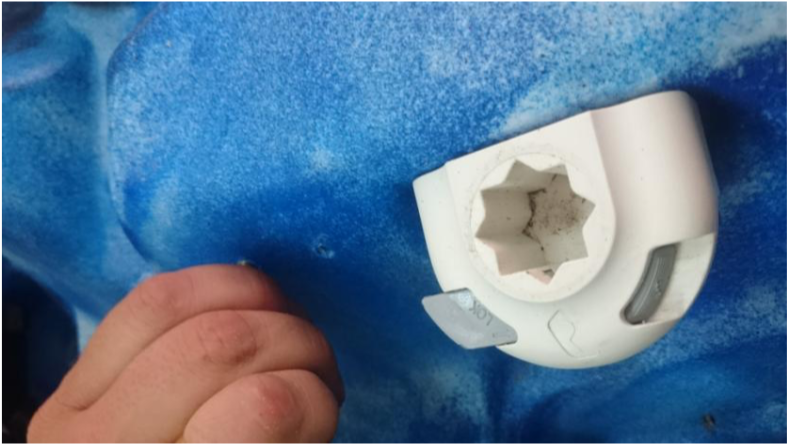

Well, we started with the brico. In my case the probe is caught in the RAILBLAZA TRACPORT DASH tray with which I have to make holes to put the banana connections (for which I have taken the measurements of a bridge anchor if some day it were sold without a probe to be able to leave the kayak in conditions)

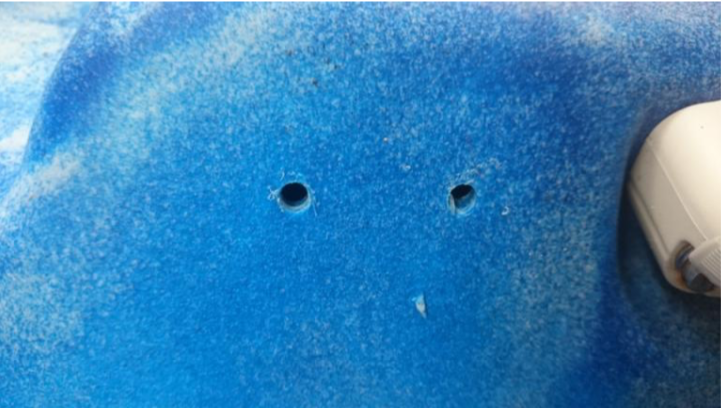

So get to work, holes made ...

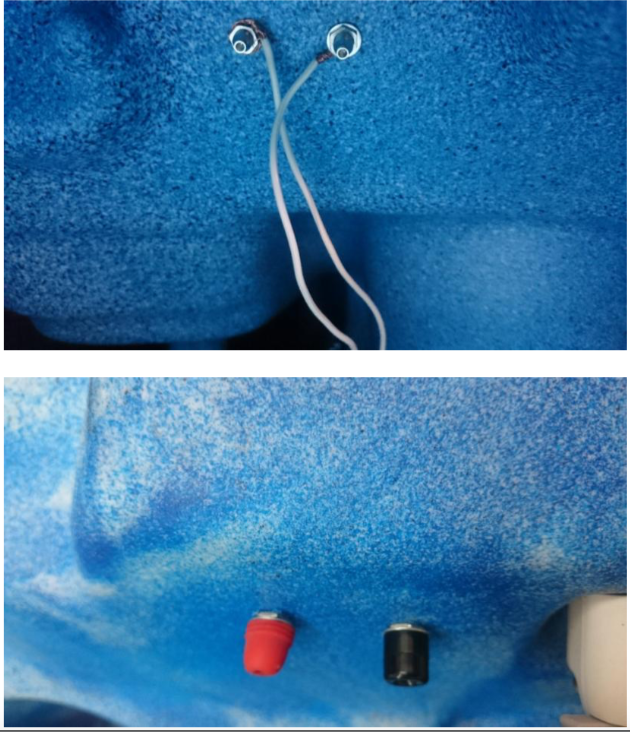

Now through the front hatch we maneuver perfectly together with the hole in the console to pass cables, connect the fastons and put the banana connections

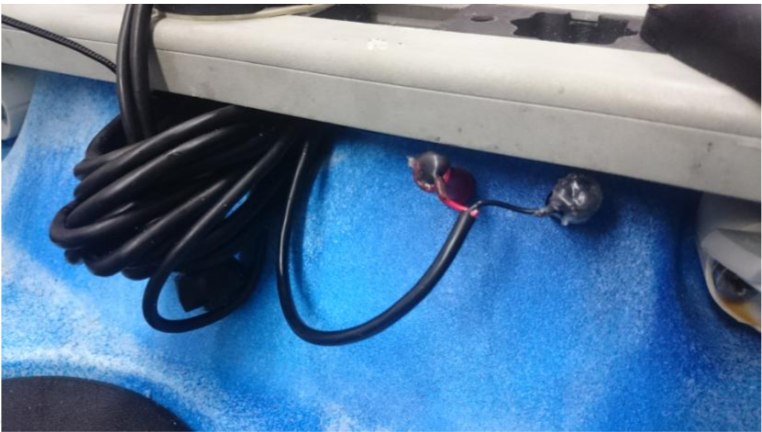

We will cover the outer connections with hot silicone

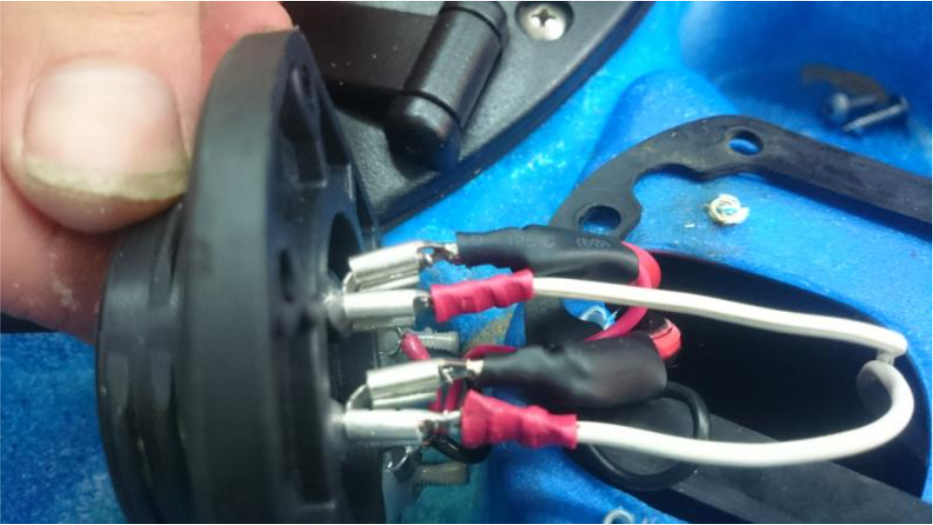

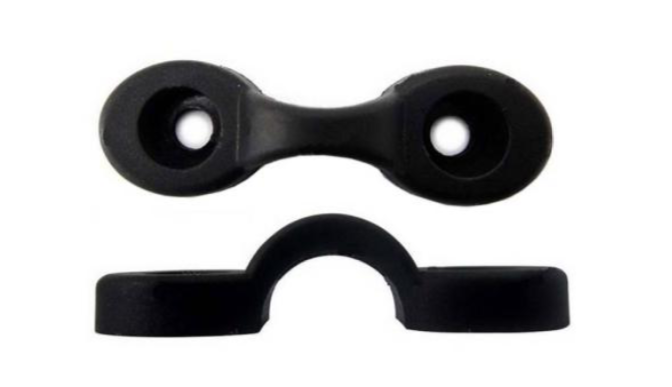

We staple the cable that we have put into the wahoo with the male female faston (white cable) we anchor this to the console connection and the cable that comes from the battery compartment we anchor it in the females of the white cable, we screw everything again and We already have the electrical connection ready to use our probe with the internal connections of the Wahoo.

I hope that I give a hand to those who need it. HOW NOT, ALWAYS GIVE THANKS TO MY PERSONAL TECHNICIAN SANJAIME90
